   High Performance DC Fired CDI with 6 Pins for GY6 Engine
   SKU: PART08H007
   ID#: 5232

Email This Page Email This Page Print This Page Print This Page

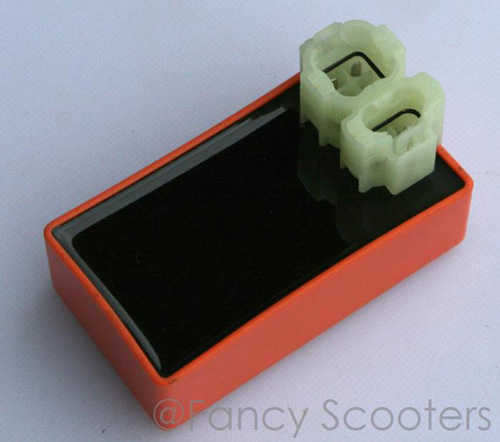

High Performance DC Fired CDI with 6 Pins for GY6 Engine
PART NUMBER:    PART08H007
AVAILABILITY:     IN STOCK
SALE PRICE:    $18.99
SHIPPING & HANDLING:    $6.00
QUANTITY:     For large quantity purchase discount, please contact us for price quote.
 For multiple parts orders, shipping and handliing will be adjusted to a reasonably lower amount!


Detailed Specification
Features
Photo Gallery
Related Items

                Detailed Specification
  • AC vs DC fired or pulsed CDI IGNITION SYSTEMS:

    Ok first the short answer.

    Here is the reader’s digest of how a CDI works

    In all cases there is a magnet that passes a magnetic coil and induces a pulse in that coil which then is wired to the CDI and causes the small induced pulse to fire an electronic device (there are more than 1 type but this all happens inside the CDI) Which discharges the larger pulse stored in a capacitor. This larger output pulse is wired to the coil where the large pulse is able to make the coil function as a voltage increasing transformer thereby producing the very high voltage necessary to create a spark across the gap of the spark plug.

    Now for the 2 main type of CDI used in the 49 cc scooter market, AC and DC Both function essentially the same. With the AC unit, alternating plus and minus varying voltages are used to charge the capacitor described in the paragraph above. The DC unit takes 12 volts more or less DC from the battery and that voltage is used to charge the capacitor described in the paragraph above.



    Pros and Cons:

    AC unit allows the engine to run without the need for a battery or charging system of any kind.

    DC unit was created to allow higher RPM ranges due to the instantaneous availability of the Charging current. Where the AC one has lots of complex and difficult to explain things like coil flux density and residual decay etc.

    The wiring is different also usually but not always, the ac ones have a rectifier or diode ahead of the CDI and the DC ones just connect directly to the battery.

    The way to tell for sure is to turn on the key and see if 12v is present at the CDI assuming all else is correct. Some units that are DC include:

    Kymco Agility 50, Diamo Velocity, Vento Triton, Schwinn, Tomos, and other high end Chinese, Korean, and Taiwanese scooters.

    One easy way to tell is the size of your CDI unit. The AC fired CDI will be much smaller than the DC fired CDI, as shown in this picture. Also, you have two plugs on the CDI, one with four, the other two. If the two wire plug actually has only one wire in it, it's a DC. If it has two wires in it, it is an AC fired. The number of wires is only a loose guide. The size of the box, along with this guide is a better determination. An AC box will be smaller (see pic) and will measure about 1 1/2 by 2 1/2 approximately, the DC box will be much larger as it has a DC-DC converter in it. Such words as AC or DC pulsed or AC or DC triggered are the same thing as the AC or DC fired units. One quick warning on performance units, with the advanced angle of our CDI's your engine may actually run worse if it's not running right or is carbureted too lean. we'd recommend installing a larger main jet to take full advantage of these units.

    Here is somewhat simplified checklist to determine type:

    Headlights turn on with key, DC. Headlights turn on with engine, AC Engine does not run without batter, DC. Engine runs without battery, AC CDI box is pretty large, DC. CDI box is smaller, AC There is one wire on the two part plug, DC. There is two wires on the two part plug, DC.


    Here is a standard ignition circuit for a Chinese scooter. Note that the red wire from the stator to the CDI will not be on a DC fired system. The kill switch wire will instead be the positive power source from the ignition key switch.

Back to Top
                Features
  • High Performance DC Fired CDI with 6 Pins for GY6 Engine
  • High performance CDI ignition units for DC fired 50cc and 150cc chinese scooters.
  • These will eliminate that irritating rev-limiter that is keeping you restricted!
  • This will also re-set your ignition advance curve for better acceleration.
  • The cheapest and easiest to install performance upgrade for your scooter.
  • These are guaranteed to work if installed in a proper system. 5-10% boost in acceleration and top speed.
  • It will only boost performance if your engine and transmission are operating up to peak already.
  • These are much more reliable and durable than the standard units.
  • Not sure if you have a DC fired CDI? The DC unit is much larger than a standard AC unit.
Back to Top
                Photo Gallery
Back to Top
