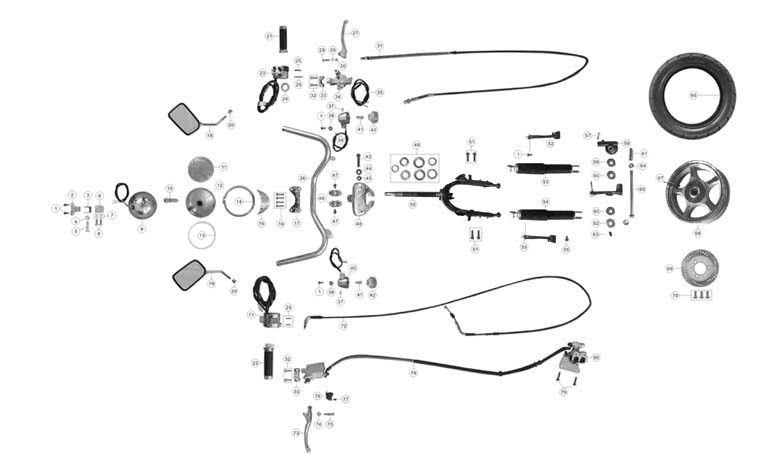

STEERING ASSEMBLY


Num.Man. SKUItem NameQtyDetails
1 MC16-150-4-1 BACKWARD,FRFENDER1 FSI Part Links
2 MC16-150-4-2 HEX FLANG BULT M6*81 FSI Part Links
3 MC16-150-4-3 HEX FLANG BULT M6*1618 FSI Part Links
4 MC16-150-4-4 HEX FLANG NUT M52 FSI Part Links
5 MC16-150-4-5 FR.SIDE REFLECTOR2 FSI Part Links
6 MC16-150-4-6 FORWARD,FRFENDER1 FSI Part Links
7 MC16-150-4-7 ADORNMENT,FORWARD,FRFENDER1 FSI Part Links
8 MC16-150-4-8 SCREW TAPPING,ST4.2*1212 FSI Part Links
9 MC16-150-4-9 FLAKE15 FSI Part Links
10 MC16-150-4-10 SCREW TAPPING,ST4.8*1625 FSI Part Links
11 MC16-150-4-11 FRONT PANEL1 FSI Part Links
12 MC16-150-4-12 SCREW TAPPING,ST4.0*1219 FSI Part Links
13 MC16-150-4-13 GASKET14 FSI Part Links
14 MC16-150-4-14 DECORATLVE COVER,FRONT PANEL2 FSI Part Links
15 MC16-150-4-15 FLAKE WITH NUT M66 FSI Part Links
16 MC16-150-4-16 CRISSCROSS BULT M6*122 FSI Part Links
17 MC16-150-4-17 CRISSCROSS BALL-SHAPE-BULT M6*161 FSI Part Links
18 MC16-150-4-18 FORWARD,VPPER DECORATE1 FSI Part Links
19 MC16-150-4-19 BACKWARD,VPPER DECORATE1 FSI Part Links
20 MC16-150-4-20 BOTTOM COVER1 FSI Part Links
21 MC16-150-4-21 HEX FLANG BULT M6*127 FSI Part Links
22 MC16-150-4-22 GASKET F64 FSI Part Links
23 MC16-150-4-23 CPPER INBOARD COVER1 FSI Part Links
24 MC16-150-4-24 CRISSCROSS BULT M6*201 FSI Part Links
25 MC16-150-4-25 OBSERVE COVER,VIN#1 FSI Part Links
26 MC16-150-4-26 LOWER INBOARD COVER1 FSI Part Links
27 MC16-150-4-27 COVER,GASTANK I1 FSI Part Links
28 MC16-150-4-28 BRACKET,COVER,GASTANK1 FSI Part Links
29 MC16-150-4-29 LOCK,COVER,GASTANK1 FSI Part Links
30 MC16-150-4-30 CLIP,LOCK1 FSI Part Links
31 MC16-150-4-31 R.PROTECTING BAR1 FSI Part Links
32 MC16-150-4-32 L.PROTECTING BAR1 FSI Part Links
33 MC16-150-4-33 FOOTREST I1 FSI Part Links
34 MC16-150-4-34 R.RR.BOARDING1 FSI Part Links
35 MC16-150-4-35 L.RR.BOARDING1 FSI Part Links
36 MC16-150-4-36 COVER,GASTANK II1 FSI Part Links
37 MC16-150-4-37 RR.SIDE REFLECTOR2 FSI Part Links
38 MC16-150-4-38 HEX FLANG NUT M68 FSI Part Links
39 MC16-150-4-39 GASKET F64 FSI Part Links
40 MC16-150-4-40 COVER,BATTERY1 FSI Part Links
41 MC16-150-4-41 INNER COVER SUNDRIS BOX1 FSI Part Links
42 MC16-150-4-42 SUNDRIS BOX1 FSI Part Links
43 MC16-150-4-43 OBSERVE COVER,CARBURETOR1 FSI Part Links
44 MC16-150-4-44 BRACKET,GEAT1 FSI Part Links
45 MC16-150-4-45 FIXING-BOARD,SEAT1 FSI Part Links
46 MC16-150-4-46 BOLT M6*801 FSI Part Links
47 MC16-150-4-47 GEAT1 FSI Part Links
48 MC16-150-4-48 CAPE NUT M62 FSI Part Links
49 MC16-150-4-49 FIXING BOARD,SEAT LOCK1 FSI Part Links
50 MC16-150-4-50 HEX FLANG BULT M6*204 FSI Part Links
51 MC16-150-4-51 R.RR.DECORATIVE SHEET1 FSI Part Links
52 MC16-150-4-52 L.RR.DECORATIVE SHEET1 FSI Part Links
53 MC16-150-4-53 OBSERVE COVER,AIPFILTER1 FSI Part Links
54 MC16-150-4-54 CABLE,SEAT1 FSI Part Links
55 MC16-150-4-55 CLIP,LOCK,SEAT1 FSI Part Links
56 MC16-150-4-56 LOCK'SEAT1 FSI Part Links
57 MC16-150-4-57 BRACKET,CABLE,SEAT1 FSI Part Links
58 MC16-150-4-58 RR.VENTLLATION COVER1 FSI Part Links
59 MC16-150-4-59 CRISSCROSS BULT M6*303 FSI Part Links
60 MC16-150-4-60 LOCK NUT M63 FSI Part Links
61 MC16-150-4-61 BRACKET,TAILLIGHT I1 FSI Part Links
62 MC16-150-4-62 TAILLIGHT1 FSI Part Links
63 MC16-150-4-63 CRISSCROSS BULT M6*161 FSI Part Links
64 MC16-150-4-64 BRACKET,TAILLIGHT II1 FSI Part Links
65 MC16-150-4-65 BRACKET,RR.LICENSE1 FSI Part Links
66 MC16-150-4-66 BULB,RR.BRAKE LIGHT1 FSI Part Links
67 MC16-150-4-67 RR,BRAKE LIGHT1 FSI Part Links
68 MC16-150-4-68 SCREW TAPPING,ST3.0*402 FSI Part Links
69 MC16-150-4-69 LOWER,RR.DECORATIVE BAR1 FSI Part Links
70 MC16-150-4-70 VPPER,RR.DECORATIVE BAR1 FSI Part Links
71 MC16-150-4-71 R.RR.TURNING LIGHT1 FSI Part Links
72 MC16-150-4-72 SCREW TAPPING,ST4.0*82 FSI Part Links
73 MC16-150-4-73 L.RR.TURNING LIGHT1 FSI Part Links
74 MC16-150-4-74 NUT M102 FSI Part Links
75 MC16-150-4-75 BULB,TURNING LIGHT 12V3W2 FSI Part Links
76 MC16-150-4-76 COVER,RR.TURNING LIGHT2 FSI Part Links
77 MC16-150-4-77 R.RR.HANDLE1 FSI Part Links
78 MC16-150-4-78 L.RR.HANDLE1 FSI Part Links
79 MC16-150-4-79 BACK REST1 FSI Part Links
80 MC16-150-4-80 REAR TAILSTOCK1 FSI Part Links
81 MC16-150-4-81 RR.RUBBER FENDER1 FSI Part Links
82 MC16-150-4-82 RR.FENDER1 FSI Part Links
